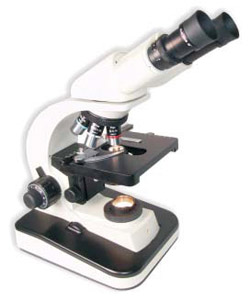

M5 INFINITY LabScope Plan Trinoc. 5 Obj. (20x) |
| | Quantity in Basket:
none Code: M5-IT
Price:$2,680.00
|
| M5 INFINITY LabScope Plan Trinoc. 5 Obj. (20x) The highly versatile M5 LabScope is built to withstand the rigors of daily laboratory use in the pathology, hematology, cytology and microbiology lab.
Features:
The five-position nosepiece allows for specialized objectives, including 50X oil Plan, 60X high dry Plan, 2X Plan and Phase Contrast objectives.
The oversized 10X/20 high point Plan eyepieces combined with Infinity Plan or DIN Plan objectives offer high resolution flat-field imaging over a larger specimen area.
The M Series was designed for comfort and ease of operation, with all controls located ergonomically within a finger’s reach.
Head
Trinocular with C-mount or eye tube
Diopter adjustment
Inclined 30° (45° available), rotates 360°
Interpupillary distance range 50-75mm
Nosepiece
Reverse quintuple nosepiece
Multiple ball bearing mounted
Stage
Mechanical stage (160mm x 140mm)
Coaxial drive controls, metal rack & pinion
Range of traverse: 77mm x 50mm
Stage locking lever
Slow-close hydraulic slide finger and Dual slide holder
Focus
Coarse adjustment: range of 20mm |
| |
