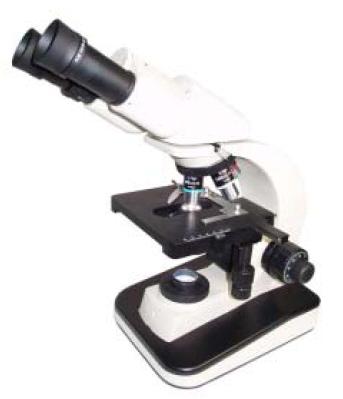

M2 Labscope Microscope | |
|  | Quantity in Basket:
none
Code: 7004-2000
Price:$1,499.00
| |
| | The M2 modular series LabScope features exceptional optical quality and expandability for top-notch performance in the lab. The 10X/20 high-point Plan eyepieces on super-wide eyetubes offer an extremely broad field of view, with ample eye relief for users who wear eyeglasses. Infinity Plan, DIN Plan, or DIN Semiplan optics match quality with value within any clinic’s budget. The M2 LabScope provides comfort, durability, dependability and superior imaging for the lifetime of the laboratory.
• Laboratory Grade
• 4-Position Nosepiece
• 10X/20 High Point Eyepieces
Head
Binocular (Seidentopf)
Trinocular with C-mount or eye tube
35mm and digital camera adapters available
Diopter adjustment
Inclined 30° (45° available), rotates 360°
10X/20 high point eyepieces (10X/22 available)
Interpupillary distance range 50-75mm
Nosepiece
Reverse quadruple nosepiece
Multiple ball bearing mounted
Objectives
Infinity Plan, DIN Plan, or DIN Semi-Plan objectives
4X, 10X, 40XR, 100XR (oil)
Anti-fungal, parfocal, parcentric, color-coded
Stage
Mechanical stage (160mm x 140mm)
Coaxial drive controls, metal rack & pinion
Range of traverse: 77mm x 50mm
Stage locking lever
Slow-close hydraulic slide finger
Dual slide holder
Focus
Coarse adjustment: range of 20mm
Fine adjustment: graduation of 2ìm
Tension control knob
Illumination
Moveable Abbe condenser, NA 1.25
Iris diaphragm
Halogen light source (12V/20W bulb)
Variable light adjustment: 0-20W output
Input 90-240V / 50-60Hz automatic switching
Accessories Included
One 2 amp fuse
Spare 12V/20W bulb
Blue, green, and yellow filters
Dust cover
Immersion oil
Operation manual
Warranty card
Options
Ceramic stage
Dark field condenser
Phase contrast turret
Polarization
Koehler-type illumination
Warranty
Lifetime on materials and workmanship
One year on electronic components
Dimensions and Weight
Height: 16 1/2” (420mm)
Length: 10 5/8” (270mm)
Width: 7 7/8” (200mm)
Weight: 19.5 lbs. (9kg)
|
| |
